CUSTOMER BENEFITS

Open to any operator thanks to the simple and intuitive full touch screen programming

Modern and efficient hand drawing part profile programming

Very fast solution provided by 2D graphic display and automatic bending sequence


FLYER



DATASHEET

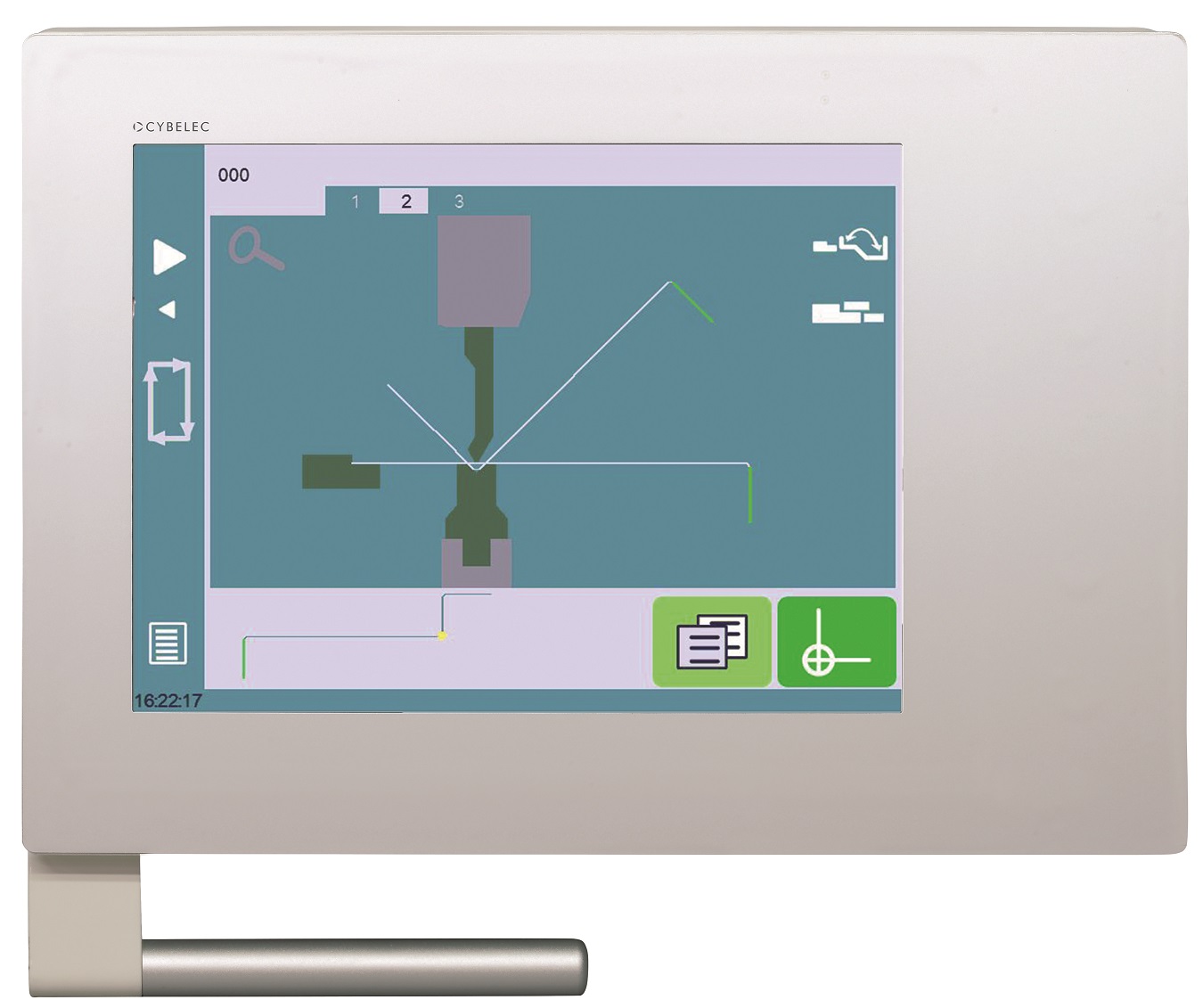

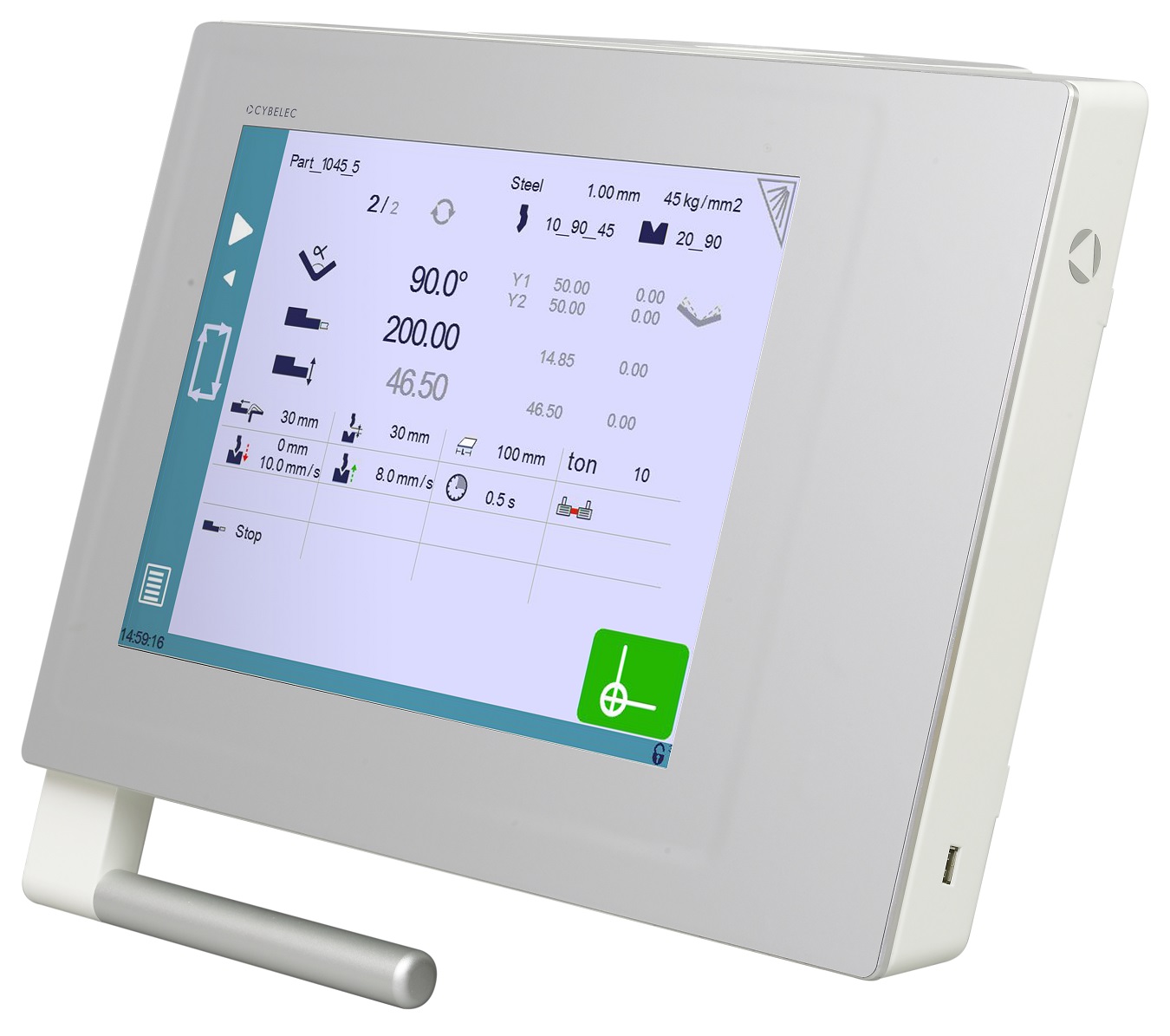

The CybTouch 15 PS is a 2D numerical control specifically dedicated for entry to mid-range CNC press-brakes.
It comes in a compact housing, similarly to the well-known CybTouch range in the field, but offering a bigger touchscreen and a new horizontal design.
As the entire CybTouch range, the CybTouch 15 PS features an intuitive touch screen user interface, offering a high integration of functionalities.
Thanks to its large keys, online help, user-friendly HMI and many automatic functions that constantly guide the operator, the CybTouch 15 PS is simply powerful and userfriendly.
The CybTouch 15 PS is integrated into a sleek and modern housing or can optionally also be delivered as a robust panel.



Easy Operating

  • Large, vivid and high-contrast fully touchscreen.
  • Simple pages, clear display, large keys.
  • Intuitive user-friendly interface.
  • Complete programming for efficient mass-production with multiple bends.
  • Easy single bends with EasyBend page.
  • On-line help and interactive warning pop-ups.
  • Comfortable wireless data backup and software updating using PC or Notebook.
  • Large variety of languages available.

Better Bending

  • Various automatic calculations of bend functions.
  • Bending sequences and programs can be memorized.
  • Angle, pressure and crowning management.
  • Easy manual movement.
  • Offline 2D software available.

Powerful

  • Controls 4 axes.
  • Automatic bend sequencing (option).
  • Bend allowance calculation.
  • Pressure – crowning calculation.
  • Modular tools for each part or bend.
  • Angle and back gauge correction.
  • Telemaintenance via wireless connection with PC or notebook.
  • USB port for memory stick for data transfer/backup.


CybTouchTools

All CybTouch come with CybTouchTools, which allows to wirelessly transferring data between a PC and CybTouch (requires optional RFLink USB key). It is used to backup/restore machine parameters, tools and parts, as well as updating the firmware.

Bundled Offline Software

CybTouch 15 PS comes with PC-ModEva offline software.
This program allows you to prepare your programs, calculate offers and check the feasibility of parts in your office on a PC. No time is wasted on the machine.
PC-ModEva allows parts from DNC and ModEva series to be transferred to CybTouch, and vice versa.
